Calendar groups

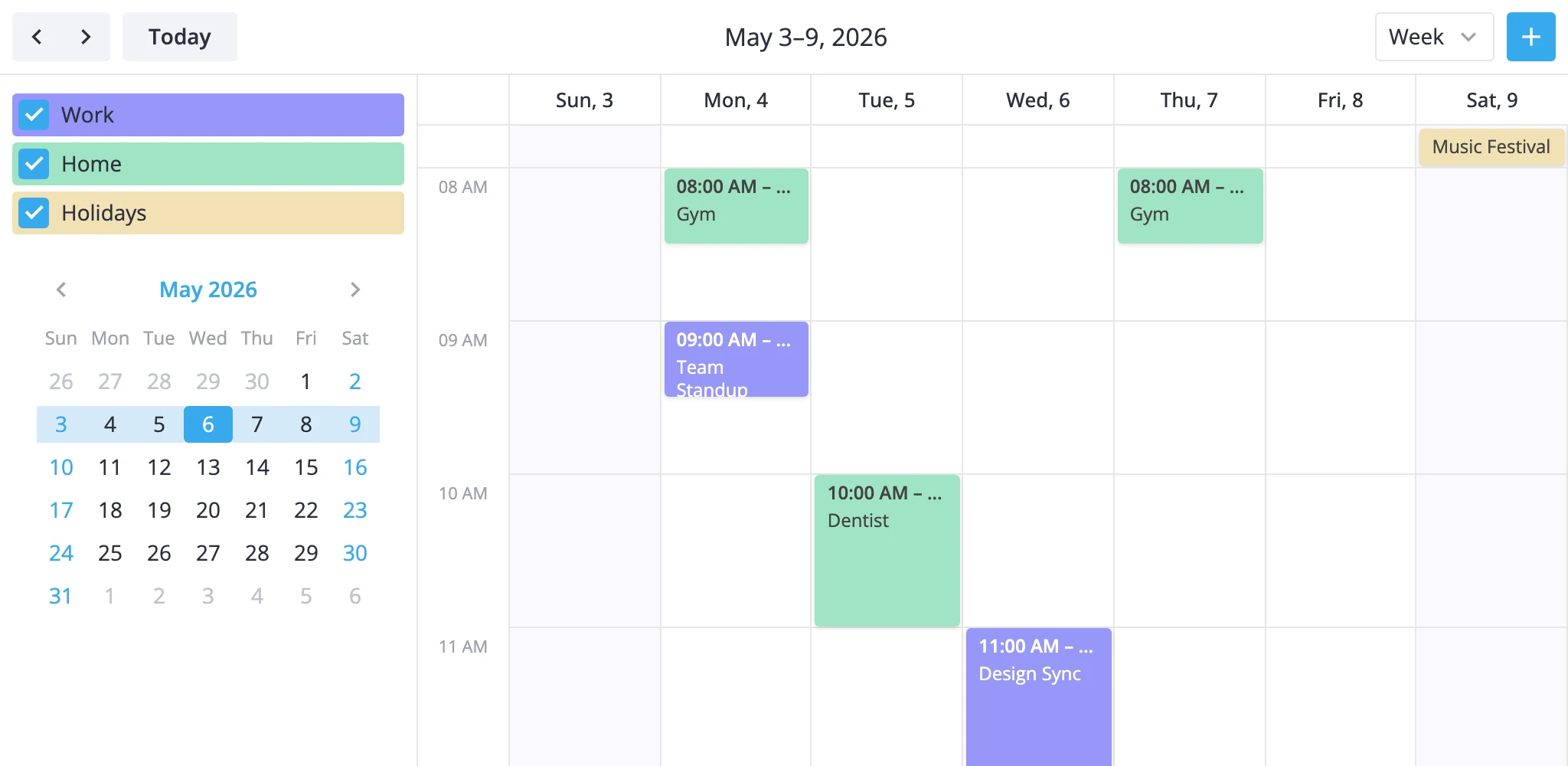

This guide covers how to expose multiple calendars to your users - work, home, holidays, project boards - as a sidebar with checkbox filters and a mini date picker.

The piece doing the work is CalendarPanel. It plugs into the calendar's sidebar slot, reads the calendar API from React context, and turns checkbox toggles into the standard filter-events action. You don't write the filter wiring yourself.

How it thinks

Each event carries a group id under a single field on the event object. By default that field is calendarId, but you choose the name through the accessor prop. The panel renders one checkbox per group entry; toggling a checkbox flips that group's bit in a local active map and dispatches a fresh predicate:

event => active[event[accessor]];

When all checkboxes are on, the panel sends filter: null to clear the filter rather than dispatching a predicate that always returns true. Both dispatches use the tag "calendar-panel", so the filter stacks correctly with other filters you might apply with a different tag.

The panel always renders the checkbox list. The open prop only toggles the mini date picker below it - collapsed mode hides the picker but keeps the filters.

Declaring calendar groups

Build a calendars array. Each entry needs id and label; the rest is optional.

const calendars = [
	{ id: "work", label: "Work", css: "cal-work" },
	{ id: "home", label: "Home", css: "cal-home" },
	{ id: "holiday", label: "Holidays", css: "cal-holiday", active: false },
];

active: false makes the group start unchecked, which means the panel applies the corresponding filter on mount - handy for optional overlays like shared calendars or vacations.

css is added to the group's row in the sidebar. Use it to color-code the group there, and to color the matching events themselves through eventCss (see "Grouping events" below).

Mounting as a side panel

Put CalendarPanel inside the children prop of <Calendar>. It reads the API from context, so no ref is needed:

import { Calendar, CalendarPanel } from "@wx/react-calendar";

const calendars = [
  { id: "work", label: "Work" },
  { id: "home", label: "Home" },
];

function App() {
  return (
    <Calendar events={data} view="week" date={date}>
      <CalendarPanel calendars={calendars} accessor="calendarId" />
    </Calendar>
  );
}

For a Gmail-style hamburger that hides the sidebar on demand, replace the toolbar with a layout that includes a menuButton and toggle the panel's open prop from onAction:

import { useState } from "react";
import { Calendar, CalendarPanel } from "@wx/react-calendar";

const toolbar = { items: [
  { id: "menu", comp: "menuButton" },
  { comp: "spacer" },
  { id: "title", comp: "dateLabel" },
  { comp: "spacer" },
  { id: "nav", comp: "dateNav" },
]};

function App() {
  const [panelVisible, setPanelVisible] = useState(true);

  const handleAction = (ev) => {
    if (ev.id === "menu-button") setPanelVisible(!panelVisible);
  };

  return (
    <Calendar events={data} view="week" date={date} toolbar={toolbar} onAction={handleAction}>
      <CalendarPanel open={panelVisible} calendars={calendars} accessor="calendarId" />
    </Calendar>
  );
}

The menu-button action id is what the built-in menuButton toolbar component dispatches when clicked.

Grouping events

Two pieces have to line up:

1. Each event has a field whose value is one of the group ids.
2. accessor on CalendarPanel names that field.

const data = [
  { id: 1, text: "Standup",  start: ..., end: ..., calendarId: "work" },
  { id: 3, text: "Gym",      start: ..., end: ..., calendarId: "home" },
];

If your data uses a different name - category, projectId, teamId - set accessor to that string. Events whose value isn't in the panel's groups stay visible: the predicate only filters out events that map to a group currently switched off.

To color events by group, return a per-group class from eventCss:

import { Calendar, CalendarPanel } from "@wx/react-calendar";

const cssByCalendar = (obj) => {
  return `cal-${obj.event.calendarId}`;
};

function App() {
  return (
    <Calendar events={data} view="week" date={date} eventCss={cssByCalendar}>
      <CalendarPanel calendars={calendars} accessor="calendarId" />
    </Calendar>
  );
}

Pair that with global styles for .cal-work.wx-box-event, .cal-home.wx-bar-event, etc., to color time-grid boxes and multi-day bars separately. The same cal-* classes work for the sidebar rows because they receive .wx-calendar-name plus the group's css class.

Reflecting selection outside

CalendarPanel already updates the calendar through filter-events. Use onChange when something else - a URL param, an analytics event, a separate component - also needs to know which groups are active.

import { Calendar, CalendarPanel } from "@wx/react-calendar";

const handleChange = ({ value, filter }) => {
  console.log("Active calendars", value);
};

function App() {
  return (
    <Calendar events={data} date={date}>
      <CalendarPanel calendars={calendars} onChange={handleChange} />
    </Calendar>
  );
}

value is the array of currently active group ids; filter is the predicate the panel just dispatched (or null when all groups are active). Two things to remember:

• onChange fires on mount when at least one group starts inactive, since the panel applies an initial filter in that case.
• Numeric ids come back as strings - they're collected from object keys, which JavaScript coerces to strings.

For the prop signatures see the API reference for CalendarPanel and eventCss.
