Columns

Columns are the stages cards move through - "Backlog", "In Progress", "Done", or whatever your workflow demands. This guide covers column setup, layout and scroll options, grouping by different fields, and runtime styling.

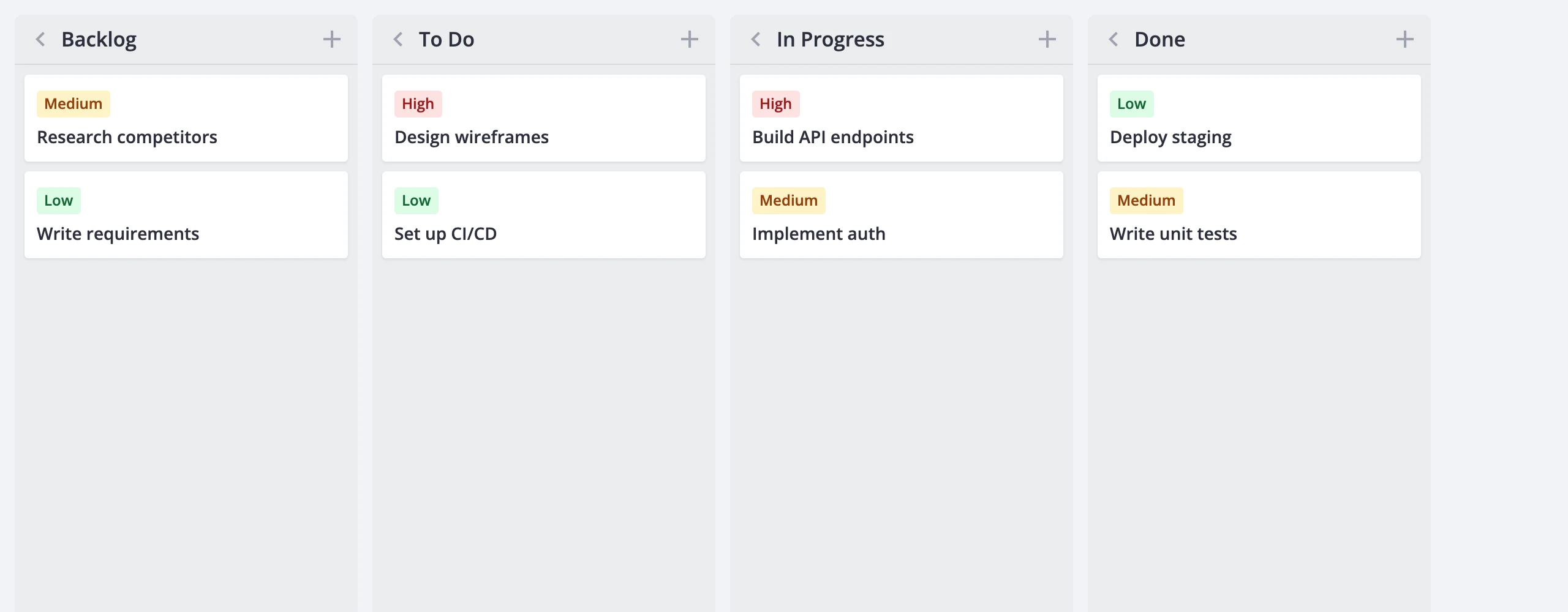

Defining columns

Every board needs a columns array. Each entry has at least an id and a label, and the array order sets the left-to-right display order.

import { Kanban } from "@svar-ui/react-kanban";

const columns = [
    { id: "backlog", label: "Backlog" },
    { id: "todo", label: "To Do" },
    { id: "doing", label: "In Progress" },
    { id: "done", label: "Done" },
];

const cards = [];

<Kanban cards={cards} columns={columns} />

A column object supports these fields:

• id - unique identifier (string or number)
• label - display text shown in the column header
• css - static CSS class applied to the column root
• metadata - freeform object for host-specific data
• cardLimit - soft cap on card count (number, true for count-only badge, or false/omitted to hide)
• addCard - whether the "+" button appears in the header (defaults to true)
• collapsed - initial collapsed state

Columns are shallow-copied on init. Mutating the original array after passing it in won't do anything - change the prop or dispatch update-column.

Column accessor

By default, each card carries a column field that matches a column id. The columnAccessor prop controls how the store reads and writes that membership.

To use a different property name, pass a string:

<Kanban cards={cards} columns={columns} columnAccessor="stage" />

Now every card needs a stage field whose value matches a column id.

When column membership is derived rather than stored as a flat property, pass an object with get and set callbacks:

const userAccessor = {
    get: (card) => card.user,
    set: (card, value) => ({
        ...card,
        user: value,
        users: [value],
    }),
};

<Kanban cards={cards} columns={columns} columnAccessor={userAccessor} />

get reads the column id from the card. set returns a new card object with the updated membership - it's called when a card is dragged to another column.

Grouping by other fields

Switch columnAccessor and columns together to regroup cards by a different dimension without recreating the widget. The same dataset can be viewed by stage, priority, or assignee.

import { useState, useMemo } from "react";
import { Kanban } from "@svar-ui/react-kanban";

const stageColumns = [
    { id: "backlog", label: "Backlog" },
    { id: "todo", label: "To Do" },
    { id: "doing", label: "In Progress" },
];

const priorityColumns = [
    { id: 1, label: "Low" },
    { id: 2, label: "Medium" },
    { id: 3, label: "High" },
];

const [groupBy, setGroupBy] = useState("stage");

const columns = useMemo(
    () => (groupBy === "stage" ? stageColumns : priorityColumns),
    [groupBy]
);
const columnAccessor = useMemo(
    () => (groupBy === "stage" ? "stage" : "priority"),
    [groupBy]
);

<Kanban cards={cards} columns={columns} columnAccessor={columnAccessor} />

When the accessor is a string, each card must have that field with a value matching one of the column ids. With a get/set object, get decides which column each card belongs to.

Column header actions

Each column header ships with a collapse toggle and an add-card button.

The collapse toggle is always present. Clicking it dispatches update-column to flip the collapsed flag. Collapsed columns show a rotated label and a card count badge but don't render their card list. Collapse works even in readonly mode.

The add-card button shows when addCard isn't explicitly false and readonly is off. Clicking it creates a new card in that column and opens the editor.

To hide the button on specific columns, set addCard: false:

const columns = [
    { id: "backlog", label: "Backlog" },
    { id: "done", label: "Done", addCard: false },
];

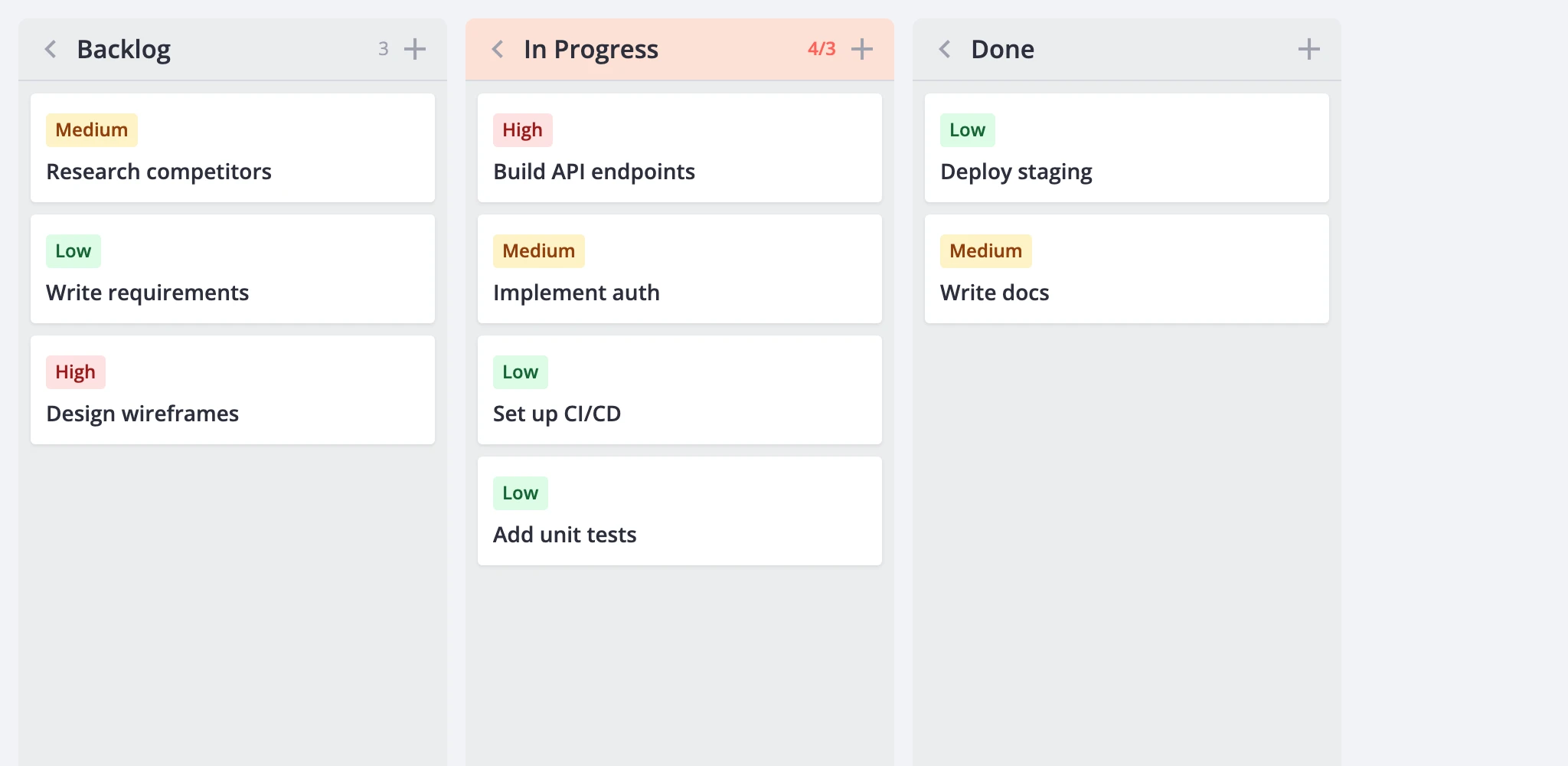

Card limits

The cardLimit field on a column controls a count badge in the header and an over-limit visual state.

• Set cardLimit to a number to show a current/limit badge. When the card count exceeds the limit, the column receives the wx-over-limit class and the badge text turns to a danger color.
• Set cardLimit to true to show a count-only badge without a cap.
• Omit or set cardLimit to false to hide the badge entirely.

const columns = [
    { id: "backlog", label: "Backlog", cardLimit: true },
    { id: "doing", label: "In Progress", cardLimit: 5 },
    { id: "done", label: "Done" },
];

<Kanban cards={cards} columns={columns} />

Card limits are soft - they flag the column visually but don't prevent cards from being added or moved in.

Layout: scroll and width

The render prop controls column layout and scrolling. Two independent settings drive it: columnScroll and fixedColumnWidth.

Scroll modes

render.columnScroll sets whether each column scrolls independently or the whole board shares one vertical scrollbar.

• columnScroll: true (default) - each column has its own vertical scrollbar. Headers stay pinned at the top of each column.
• columnScroll: false - the board becomes one tall scroll surface. All columns scroll together, and headers stick to the top of the viewport.

<Kanban cards={cards} columns={columns} render={{ columnScroll: false }} />

Column width

render.fixedColumnWidth controls whether columns have a uniform pixel width or share the available space.

• fixedColumnWidth: true (default) - every column is 280px wide. Horizontal scrolling appears when the columns overflow the viewport.
• fixedColumnWidth: false - columns share the viewport width equally, with a minimum floor of 240px each. Horizontal scrolling appears only when the total minimum width exceeds the viewport.

<Kanban
    cards={cards}
    columns={columns}
    render={{ fixedColumnWidth: false }}
/>

These two settings are orthogonal. All four combinations work:

columnScroll	fixedColumnWidth	Result
true	true	Classic board. Each column scrolls independently, fixed width.
true	false	Columns fill the viewport, each scrolls independently.
false	true	Board-wide scroll with sticky headers, fixed-width columns.
false	false	Board-wide scroll with sticky headers, columns fill viewport.

Performance

For large boards, the render prop offers virtualization options that keep the DOM small while the store holds the full dataset.

Card virtualization

Set render.virtualizeCards to render only the cards visible in the scroll viewport, plus a configurable overscan buffer:

<Kanban
    cards={cards}
    columns={columns}
    render={{
        virtualizeCards: true,
        estimatedCardHeight: 96,
        cardOverscan: 8,
    }}
/>

• estimatedCardHeight - height guess in pixels for unmeasured cards. Defaults to 80.
• cardOverscan - extra cards rendered above and below the visible area. Defaults to 5.

Heights are measured after the first render and cached by card id. The cache survives reorder, filter, and sort. In flex-width mode, width changes invalidate the cache automatically so cards re-measure.

Column virtualization

Set render.virtualizeColumns to skip rendering card content for off-screen columns:

<Kanban
    cards={cards}
    columns={columns}
    render={{
        virtualizeColumns: true,
        columnOverscan: 1,
    }}
/>

Column shells (headers, collapse state, badges) stay in the DOM - only the card list inside off-screen columns is skipped. This preserves scroll geometry and drop-target lookup.

• columnOverscan - extra columns rendered beyond the visible area on each side. Defaults to 1.

Card and column virtualization are independent and can be combined.

Updating columns at runtime

Call api.exec("update-column", ...) to patch a column after the board mounts. Pass the column id and a partial object with the fields to change.

import { useRef } from "react";
import { Kanban } from "@svar-ui/react-kanban";

const api = useRef(null);

const renameColumn = () => {
    api.current.exec("update-column", {
        id: "doing",
        column: { label: "Work in Progress" },
    });
};

const collapseColumn = () => {
    api.current.exec("update-column", {
        id: "done",
        column: { collapsed: true },
    });
};

<Kanban ref={api} cards={cards} columns={columns} />

Any ColumnConfig field is fair game: label, css, cardLimit, collapsed, addCard, and so on.

Styling columns

Columns accept CSS classes in two ways: statically per definition or dynamically via a callback.

Static classes

Set css on a column definition to apply a class unconditionally:

const columns = [
    { id: "backlog", label: "Backlog", css: "column-muted" },
    { id: "doing", label: "In Progress" },
];

Dynamic classes

Pass columnCss to compute classes at render time based on a column's cards and state:

<Kanban
    cards={cards}
    columns={columns}
    columnCss={(items, column) => {
        if (items.length === 0) return "column-empty";
        return "";
    }}
/>

The first argument is the column's filtered/sorted card array; the second is the projected column view. The returned string is appended to the column root's class list after any static css value and the built-in modifiers (wx-collapsed, wx-over-limit).

Built-in CSS classes

The board applies these classes automatically:

• wx-column - always present on the column root
• wx-collapsed - set when the column is collapsed
• wx-over-limit - set when the card count exceeds a numeric cardLimit

Target these in your stylesheet to customize column states.
