Card Popup

The cardPopup prop lets you replace the default editor click target with a custom popup component. When set, clicking a card opens your component in an anchored popup instead of the sidebar editor. This is useful for lightweight previews, quick-action panels, or any card-click experience that doesn't need a full form.

How It Works

The popup takes over the card-click path. Without cardPopup, clicking a card dispatches select-card and opens the Editor. With cardPopup set, clicks open your popup component instead -- the editor is skipped entirely.

Your component receives two props:

• card -- the full KanbanCard object for the clicked card
• close -- a function that dismisses the popup

The popup anchors to the clicked card element and repositions on scroll. Pressing Escape or clicking outside the popup also closes it. Only one popup is visible at a time; clicking a second card swaps the content and anchor.

Setup

Pass a Svelte component constructor to the cardPopup prop.

<script>
  import { Kanban } from "@svar-ui/svelte-kanban";
  import QuickView from "./QuickView.svelte";

  const columns = [
    { id: "todo", label: "To Do" },
    { id: "doing", label: "In Progress" },
    { id: "done", label: "Done" },
  ];
  const cards = [
    { id: 1, label: "Draft spec", column: "todo" },
    { id: 2, label: "Build UI", column: "doing" },
  ];
</script>

<Kanban {cards} {columns} cardPopup={QuickView} />

The popup component itself is a regular Svelte component:

<!-- QuickView.svelte -->
<script>
  let { card, close } = $props();
</script>

<div class="quick-view">
  <h4>{card.label}</h4>
  {#if card.description}
    <p>{card.description}</p>
  {/if}
  <button onclick={close}>Close</button>
</div>

<style>
  .quick-view {
    background: white;
    border-radius: 8px;
    box-shadow: 0 4px 16px rgba(0, 0, 0, 0.15);
    padding: 16px;
    width: 280px;
  }
</style>

The widget handles positioning and dismissal. You own the markup and styling inside the popup.

Component Contract

Your popup component must accept these props:

Prop	Type	Description
card	KanbanCard	The clicked card's data
close	() => void	Call this to dismiss the popup

The popup is fully interactive -- pointer events pass through to your content, so buttons, inputs, and links all work. The widget provides no default background, padding, or shadow; style everything in your component.

If your popup needs to dispatch actions (update a card, delete it, open the editor), obtain the API through the init callback and pass it to your component via context or props.

Coexistence with the Editor

When cardPopup is set, clicks always open the popup, never the editor. The two don't compete at runtime -- the popup wins on every click path.

If you want both a preview popup and a full editor, add an "Open editor" button inside your popup that dispatches select-card programmatically:

<script>
  import { Kanban, Editor } from "@svar-ui/svelte-kanban";
  import CardPreview from "./CardPreview.svelte";

  let api = $state();
</script>

<Kanban
  {cards}
  {columns}
  cardPopup={CardPreview}
  init={a => (api = a)}
/>
{#if api}<Editor {api} />{/if}

<!-- CardPreview.svelte -->
<script>
  let { card, close } = $props();

  // api passed via context by the host
  import { getContext } from "svelte";
  const api = getContext("kanban-api");

  function openEditor() {
    api.exec("select-card", { id: card.id });
    close();
  }
</script>

<div class="preview">
  <h4>{card.label}</h4>
  <p>{card.description}</p>
  <button onclick={openEditor}>Edit in sidebar</button>
  <button onclick={close}>Close</button>
</div>

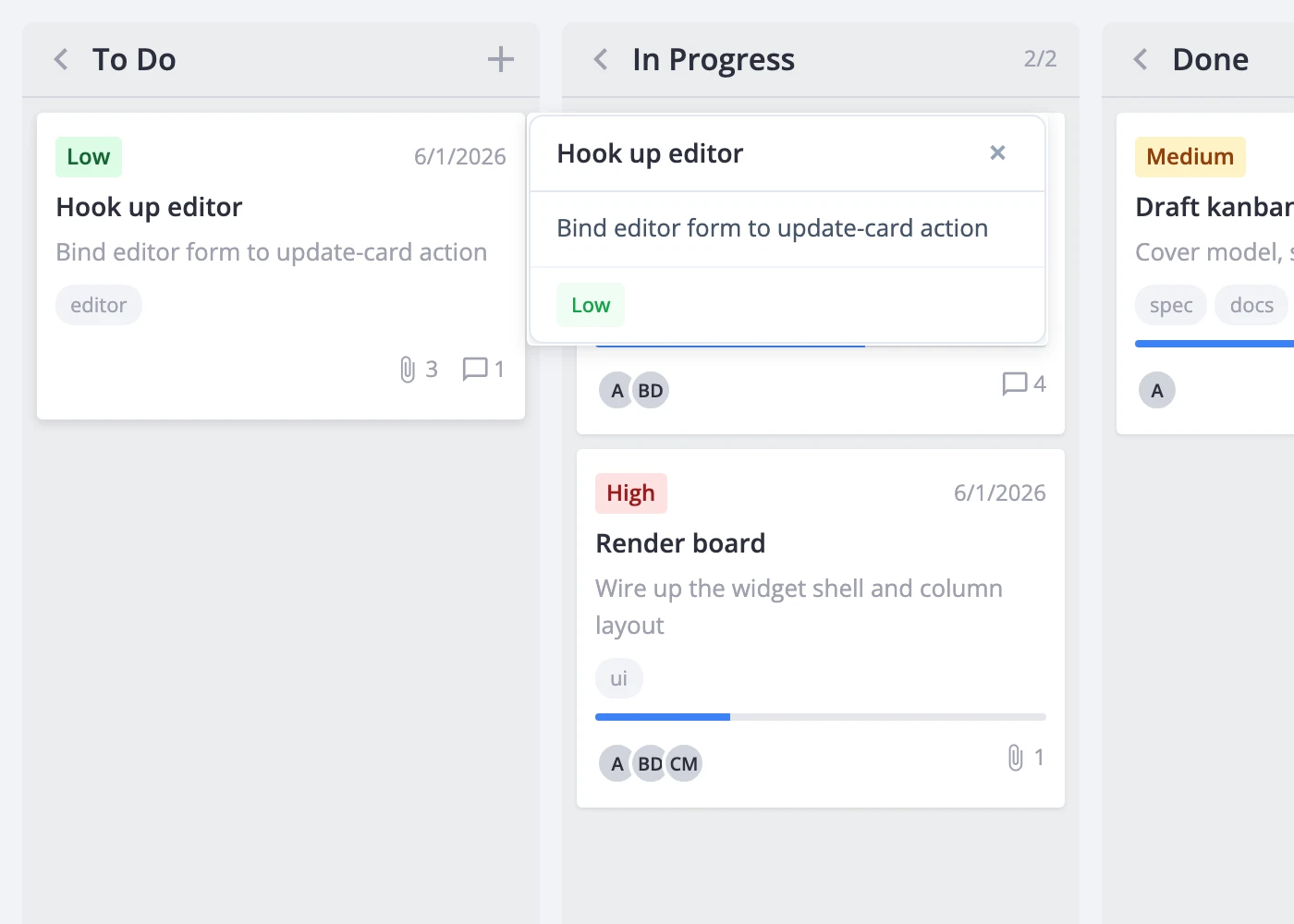

Clicking a card shows the preview popup. The preview's "Edit in sidebar" button opens the full editor and closes the popup.

For the full prop reference, see cardPopup.
