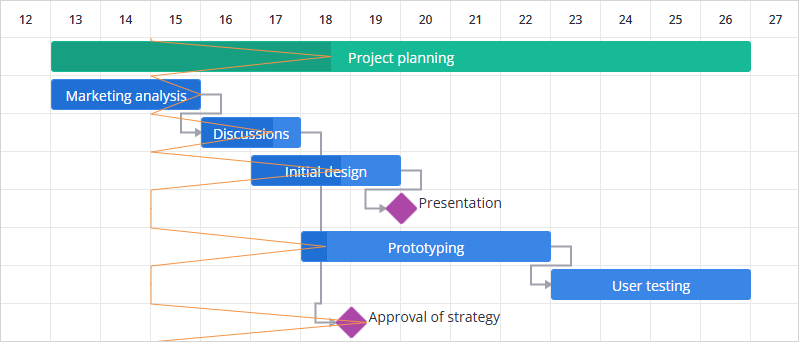

A progress line gives an at-a-glance read of schedule variance: a single polyline drawn at a status date that bulges left where tasks are behind, bulges right where tasks are ahead, and stays vertical where everything is on track.

Progress line

Enable the progress line​

Set the progressLine property to true to draw the line with today as the status date:

import { Gantt } from "@svar/react-gantt";
import { getData } from "./data";

const { tasks, links, scales } = getData();

export default function Example() {
  return <Gantt tasks={tasks} links={links} scales={scales} progressLine />;
}

Pass a Date instead of true to anchor the line at a different status date, such as a milestone review date:

<Gantt
  tasks={tasks}
  links={links}
  scales={scales}
  progressLine={new Date(2024, 3, 10)}
/>

How the line is drawn​

The line is anchored at the status date and zigzags left or right of it to visualize each task's schedule variance:

  • On track — the task point sits exactly on the status date; the line is vertical there
  • Behind schedule — the point pulls left of the status date
  • Ahead of schedule — the point pulls right of the status date

Every visible row contributes a point, including summary tasks and milestones.

Exceptions​

Some tasks don't reflect schedule variance. Depending on the case, a task either contributes no point at all or gets a point that stays on the status date.

Tasks with no point:

  • Collapsed children — tasks hidden inside a collapsed summary aren't visible rows

Tasks whose point sticks to the status date:

  • Completed tasks — a task that ended before the status date with progress at 100% is already done
  • Not-yet-started tasks — a task that starts after the status date with progress at 0% hasn't begun
  • Unscheduled tasks — when unscheduledTasks is enabled, a task without dates has no bar to measure variance from
  • Inactive tasks — when inactiveTasks is enabled, an inactive task doesn't take part in the progress tracking
  • Group rows — rows created by grouping have no task bar

Customize the style of the progress line​

To change the default style, redefine the CSS variables for the progress line:

  • --wx-gantt-progress-line-color — color of the line; default #f5953b
  • --wx-gantt-progress-line-width — width of the line in pixels; default 1
import { Gantt } from "@svar/react-gantt";
import { getData } from "./data";
import "./Example.css";

const { tasks, links, scales } = getData();

export default function Example() {
  return <Gantt tasks={tasks} links={links} scales={scales} progressLine />;
}
/* Example.css */
.wx-willow-theme {
  --wx-gantt-progress-line-color: red;
  --wx-gantt-progress-line-width: 2;
}
