Integration with SvelteKit

This guide covers the key steps to integrate SVAR Gantt into a SvelteKit application: configuring Vite, applying a theme, setting up layout, and enabling task editing.

The complete source code is available at github.com/svar-widgets/gantt-demo-sveltekit. This guide covers the basic branch of the repo.

Creating a project​

Create a new SvelteKit application:

npx sv create my-gantt-app --template minimal --types ts
cd my-gantt-app
npm install

Then add the SVAR Gantt package:

npm install @svar-ui/svelte-gantt

Configuring Vite​

We need to configure Vite for SVAR Gantt. The Gantt package requires a build-time variable. Add a define entry to vite.config.ts:

import { sveltekit } from '@sveltejs/kit/vite';
import { defineConfig } from 'vite';

export default defineConfig({
  plugins: [sveltekit()],
  define: {
    __APP_VERSION__: JSON.stringify("2.5.0")
  }
});

Adding the Gantt component​

With the package installed, create src/lib/components/GanttChart.svelte and import the Gantt widget:

<script lang="ts">
  import { Gantt } from "@svar-ui/svelte-gantt";

  const tasks = [
    {
      id: 1,
      text: "Project Planning",
      start: new Date(2024, 0, 1),
      end: new Date(2024, 0, 10),
      progress: 100,
      type: "summary",
      open: true,
    },
    {
      id: 2,
      text: "Requirements Gathering",
      start: new Date(2024, 0, 1),
      end: new Date(2024, 0, 5),
      progress: 100,
      parent: 1,
    },
    // ... more tasks
  ];

  const links = [
    { id: 1, source: 2, target: 3, type: "e2s" },
  ];

  const scales = [
    { unit: "month", step: 1, format: "%M %Y" },
    { unit: "week", step: 1, format: "Week %w" },
  ];
</script>

<div style="height: 600px; width: 100%;">
    <Gantt {tasks} {links} {scales} />
</div>

To display the component, update src/routes/+page.svelte:

<script>
  import GanttChart from "$lib/components/GanttChart.svelte";
</script>

<div class="container">
  <header>
    <h1>My Gantt Chart</h1>
  </header>
  <main>
    <GanttChart />
  </main>
</div>

Run npm run dev to check the output. The component renders, but elements are misaligned and unstyled. The theme is missing.

Applying the theme​

The Svelte package embeds its styles directly in the components, so no separate CSS import is needed. Gantt requires a theme wrapper for visual styling. Wrap the Gantt with Willow to apply the default theme. For full customization options, see the Styling guide.

<script lang="ts">
  import { Gantt, Willow } from "@svar-ui/svelte-gantt";

  // ... tasks, links, scales definitions ...
</script>

<div style="height: 600px; width: 100%;">
  <Willow>
      <Gantt {tasks} {links} {scales} />
  </Willow>
</div>

The chart now shows styled headers, colored task bars, and proper visual feedback.

main

Fixing the layout​

To make the Gantt fill available space instead of a fixed 600px height, change the container to use percentage height:

<div style="height: 100%; width: 100%;">
  <Willow>
      <Gantt {tasks} {links} {scales} />
  </Willow>
</div>

The Gantt might collapse or not fill the space correctly. The issue is that the theme wrapper needs explicit height. Create src/app.css and add this:

html,
body {
  height: 100%;
  margin: 0;
}

.wx-theme {
  height: 100%;
  overflow: hidden;
}

SVAR theme wrappers apply .wx-theme to their root element. Without explicit height, it defaults to content-based sizing, which breaks percentage-based layouts.

Import the CSS in your layout. Update src/routes/+layout.svelte:

<script>
  import "../app.css";

  let { children } = $props();
</script>

{@render children()}

The Gantt now fills its container correctly.

Enabling edit operations​

To let users modify task properties, add the Editor reference component. Capture the Gantt API reference with bind:this and pass it to Editor:

<script lang="ts">
  import { Gantt, Willow, Editor } from "@svar-ui/svelte-gantt";

  let api = $state<any>(null);

  // ... tasks, links, scales definitions ...
</script>

<div style="height: 100%; width: 100%;">
  <Willow>
      <Gantt {tasks} {links} {scales} bind:this={api} />
      <Editor {api} />
  </Willow>
</div>

See how to access Gantt API to know more about bind:this={api}.

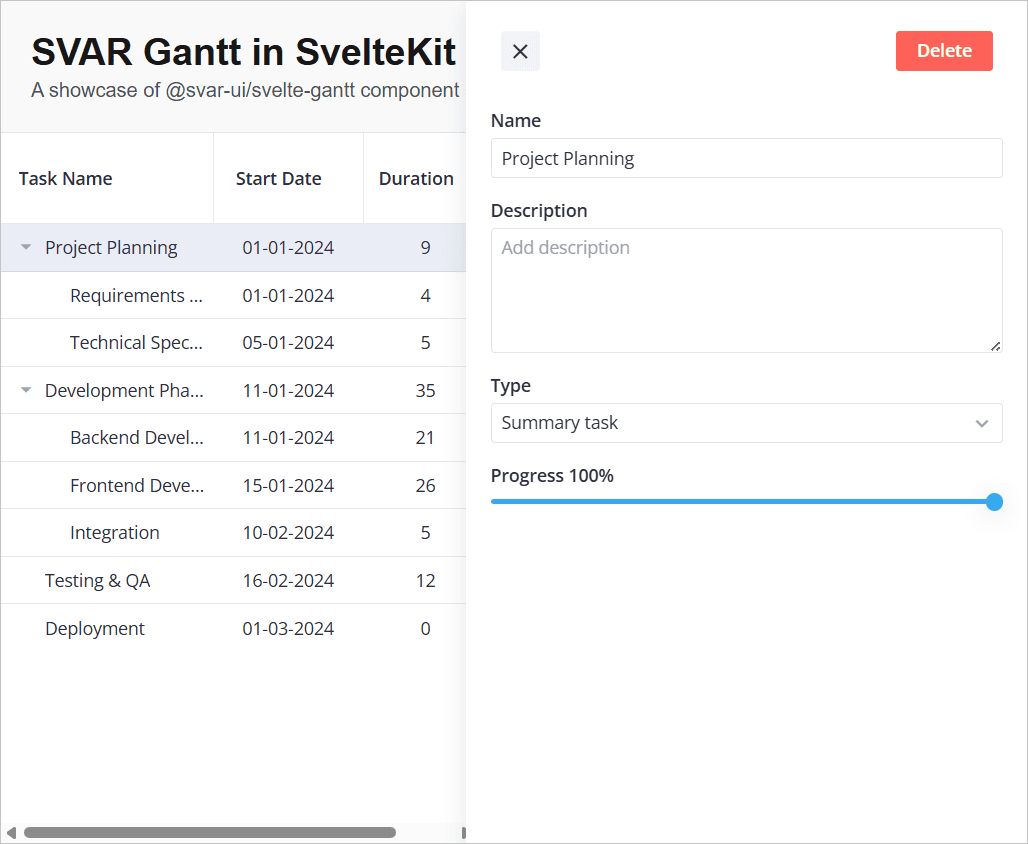

Double-clicking a task opens the editor panel. Users can change the task name, dates, progress, and other properties.

editor

At this point you have a working Gantt with task editing and client-side data. To persist changes to a server, continue with Connecting SVAR Gantt to a backend.
