Filter user interface overview

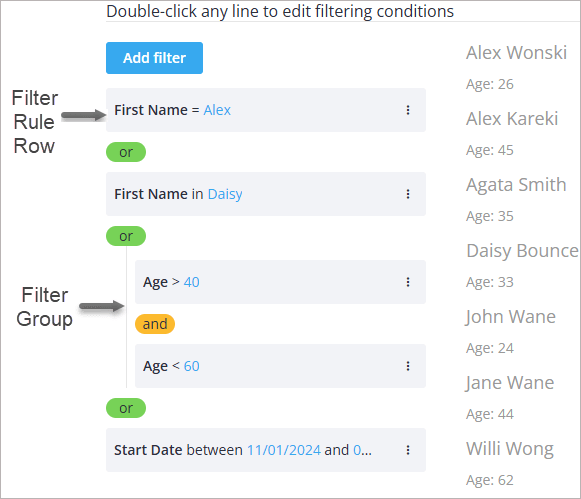

FilterBuilder

FilterBuilder is the core React component that consists of the following main UI elements:

• Filter group container
• Filter rule rows
• Context menu for adding and editing groups and rules
• Filter editor is a standalone component described below

The component mode can be set to one of three available:

• simple - vertical layout with AND logic only
• line - horizontal layout for compact use
• list - (default) vertical layout with full rule nesting support

Filter group container

It allows visual grouping of filters using logical operators: AND, OR.

Each group can contain:

• Filter rules (single conditions)
• Nested filter groups (to allow complex logic)

Filter rule rows

Each rule allows users to:

• Select a field (e.g. name, age, status)
• Choose a condition (e.g. equals, greater than, contains)
• Input a value (or pick from dropdown if options are provided)

Context menu

Context menu allows the user to:

• Edit a rule
• Add a filter below the current rule
• Add a group (nested group)
• Delete a rule or group

FilterEditor

It's a standalone React component used inside the FilterBuilder.

To add a filter, a user should:

1. In the top dropdown, select a field to filter by
2. In the next dropdown, select the filtering operation ("equal", "contains", etc.)
3. Input a value or select it from the provided options list
4. Click Apply

FilterBar

The component provides next elements for quick filtering:

• Text input (for text, number fields)
• Dropdown (for select, or dynamic field selectors)
• Optional label shown before input

To filter data, a user should input the value into the input or/and select an option from the dropdown. After the delay, the component outputs the filtered data.

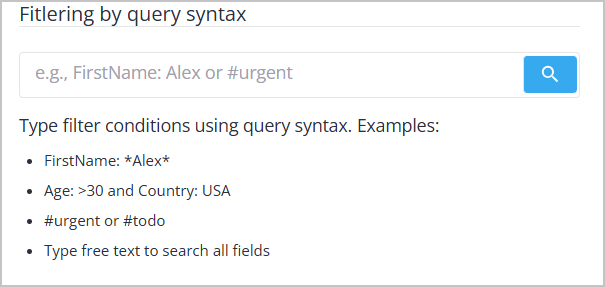

FilterQuery

The component provides the following elements for query-based filtering:

• A single-line query input
• Autocomplete suggestions for fields and values
• Syntax highlighting for fields, operators, and values
• A search button to submit the query

To filter data, the user types a query expression into the input field. As the query is written, autocomplete suggests available fields and values, and syntax highlighting shows the query structure. When the query is submitted, the component emits a parsed filter configuration that can be used to filter the dataset.

FilterQuery can also operate in Natural Language Mode, where users type filter conditions in plain text instead of query syntax. In this mode, the input text is sent to an AI/NLP endpoint that converts the description into a structured filter configuration.
